Black Truck ORD Parts List

We are often asked "What parts should I use to build my truck?"

What better way to answer this question than to show a parts list on our personal rigs!

This is the run down for our shop truck named "Black Truck"

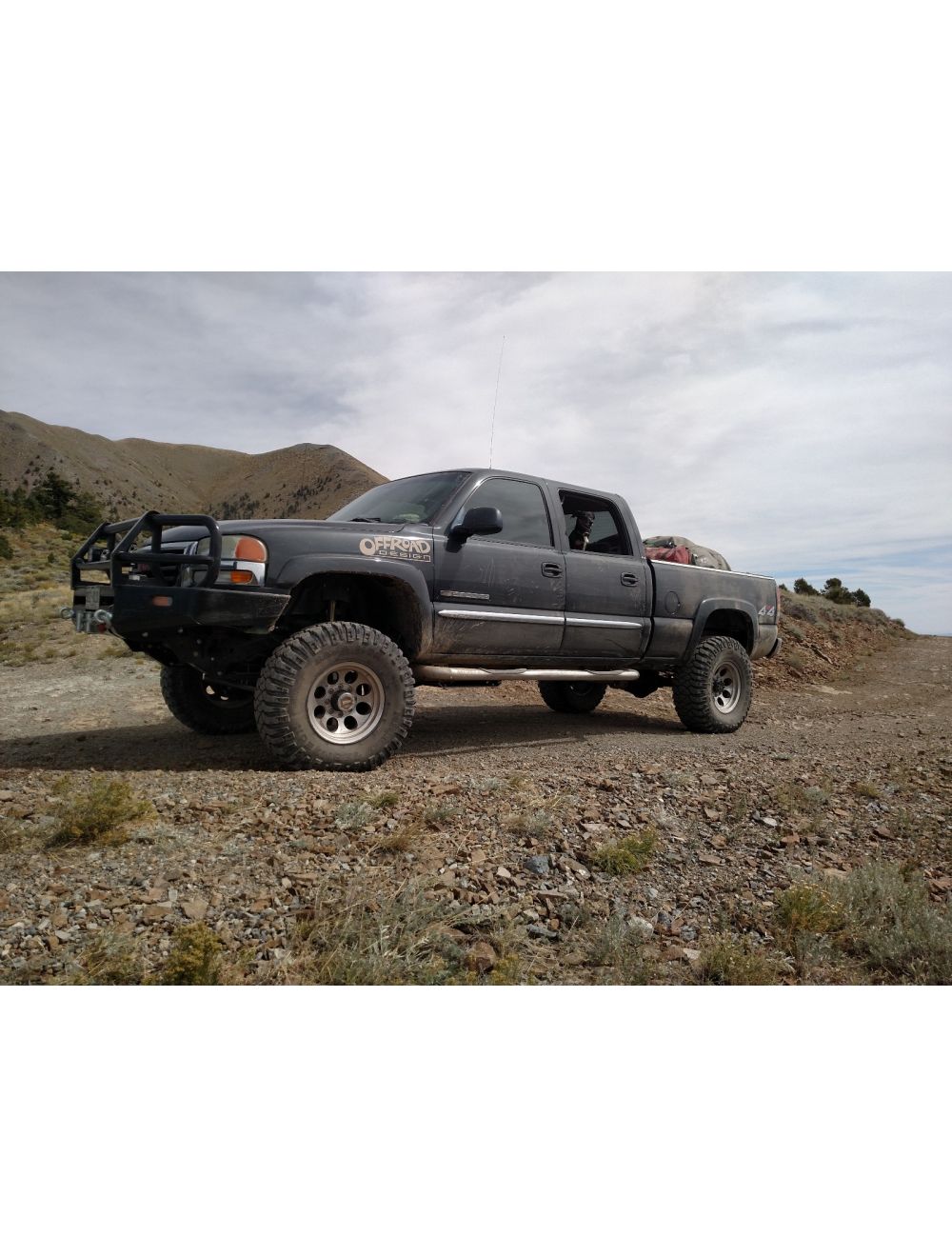

It is a 2004 Sierra 2500, 6" Lift, 37" tires, 4.88 gears, Lq4 6.0, 4l80e, NP261, 1978-79 Ford Dana 60 front with ARB locker front, 14 Bolt Full Float with ARB locker rear.



From $33.00

To $9,080.99

SKU
Black Truck ORD Parts List
Customize Black Truck ORD Parts List
Name
Qty
Price
Offroad Design Custom Front Springs: 44/47 Inch Length
$980.00
01-10 2500 and 3500 Chevy Solid Axle Conversion Using Aftermarket GM Front Springs
$630.00
Kevlar Main Eye Spring Bushing Kit for Aftermarket Front Springs, '67-87 (91) GM Trucks, Greasable
$33.00
Engine Cage/Shock Hoop System From Front Coilover Conversion Kit, w/Tube Clamps and Shock Tabs
$317.00
Name
Qty
Price
4
$240.00
Kevlar 4-1/2
$199.00
Name
Qty
Price
Ford Dana 60 Crossover Steering System for '88-'98 GM Trucks, 3-7
$539.00
ORD Spec Hydraulic Assist Kit, O-Ring Pump/Reservoir w/#12 Feed #8 Return, '80-87 (91) GM 2WD Steering Gear, 1-3/4
$2,185.99
Name
Qty
Price
10.5
$150.00
Vehicle brakeline kit for '88-00 GMT400 trucks, 3/8
$116.00
Brakeline Kit for 14 Bolt Rear Disc Kit: Stainless Braided Lines 10mm Banjo
$89.00
Name
Qty
Price
Pair of Weld on Spring Perches for GM, Corp 14 Bolt 3- 3/8
$75.00
ARB D60 differential cover, black
$197.00
ARB Compressor High Performance Single Piston
$338.00
ARB Air Locker for Dana 60, 35 spline, 4.10 and Down
$1,231.00
ARB Air Locker for GM 14 Bolt 10.5 Inch Full Float, 30 spline, 4.10 and Down
$1,231.00
Yukon 35 Spline Locking Hubs, Internal Style, Fits GM and Ford Dana 60 and 92-93 Dodge
$530.00

* Required Fields

Your Customization
Black Truck ORD Parts List
Black Truck ORD Parts List

In stock

$33.00

Summary

    The Black truck is a great all around shop truck. Used as a daily driver and weekend camp rig. It is often fitted with an ARB roof tent and Refrigerator for overland adventures. Sporting one ton axles with selectable lockers makes it ready for any trail

    Our 2004 Sierra 2500 is running our SAS kit to get a burly Kingpin Dana 60 under it. With the ARB lockers front and rear it can climb over any obstacle. With selectable lockers the daily commute is great as the lockers are unnoticeable turned off. Topped off with some Yukon hardcore locking hubs we can have positive 4x4 engagement that wont leave us stranded.

    For suspension we are running a set of 0" Lift custom springs up front to get an amazing on road ride and awesome off road flex. We used a shackle flip in the rear to keep the stock tow rated springs for hauling trailers.

    We are running our crossover steering with ORD Custom hydro assit connected to our HD tie rod. This offers one finger steering on the road and great control off road.

    For stopping power we are running our extended braided stainless steel brake line kit and disc brake swap in the rear.

    For tire clearance we moved the windshield wash bottle from the fender well to inside the engine bay. On this truck we unhooked the ABS system but there are aftermarket relucter wheel availble to keep that in working order.
