Triple U-Joint Steering Shaft for ORD Coilover Conversion

Triple U-Joint Steering Shaft for ORD Coilover Conversion

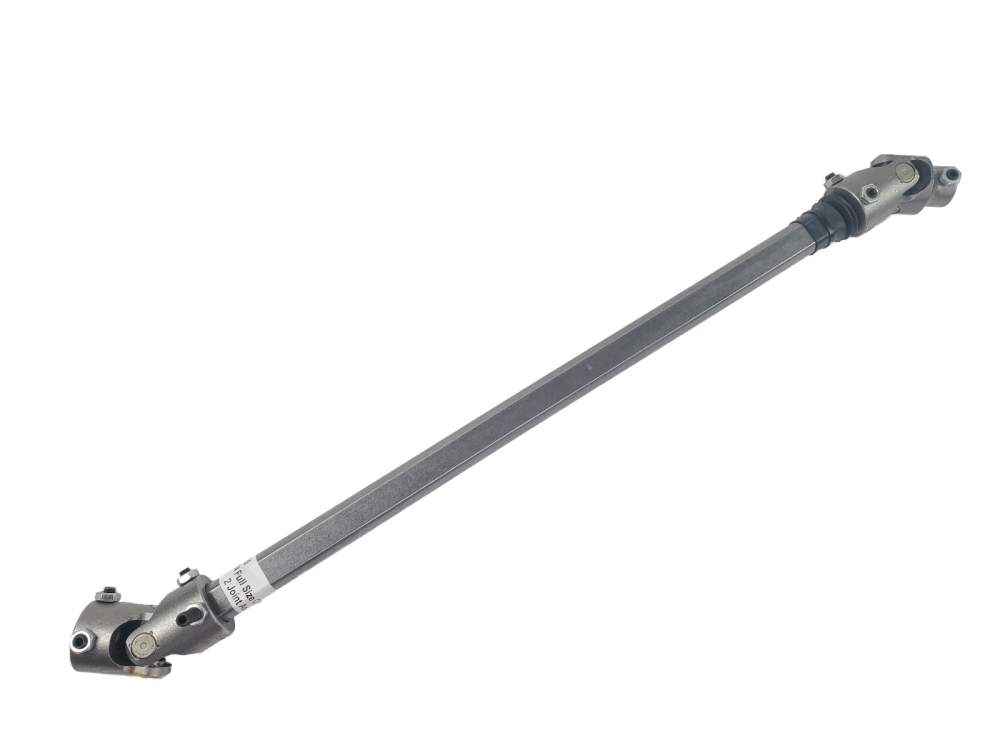

U-Joint Steering Shaft

Eliminate excess play in your steering system by ditching the rag joint and replacing it with a U joint on your steering shaft!

As low as $260.40
SKU
U-Joint Steering Shaft

Eliminate excess play in your steering system by ditching the rag joint and replacing it with a U joint on your steering shaft!

If you are mixing and matching Steering colums/steering gearboxes in your truck we can help you find the right steering shaft.

Steering Column

Some 1972 and older - Uses 3/4" Column shaft - 36 Spline (very crucial to check this one because not all of them use this joint at the column)

1973-1978 - Use 1" Column Shaft - 48 Spline

1979-1994 - Use 13/16" Column Shaft Diameter 1DDx1DD

Steering Gear Box

1967-1976 - Use 3/4DDx13/16 Steering Box Shaft - 36 Steering Box Spline

1977-1994 - Use 3/4DDx3/4 Steering Box Shaft- 30 Steering Box Spline



Make sure to check what is on your truck!

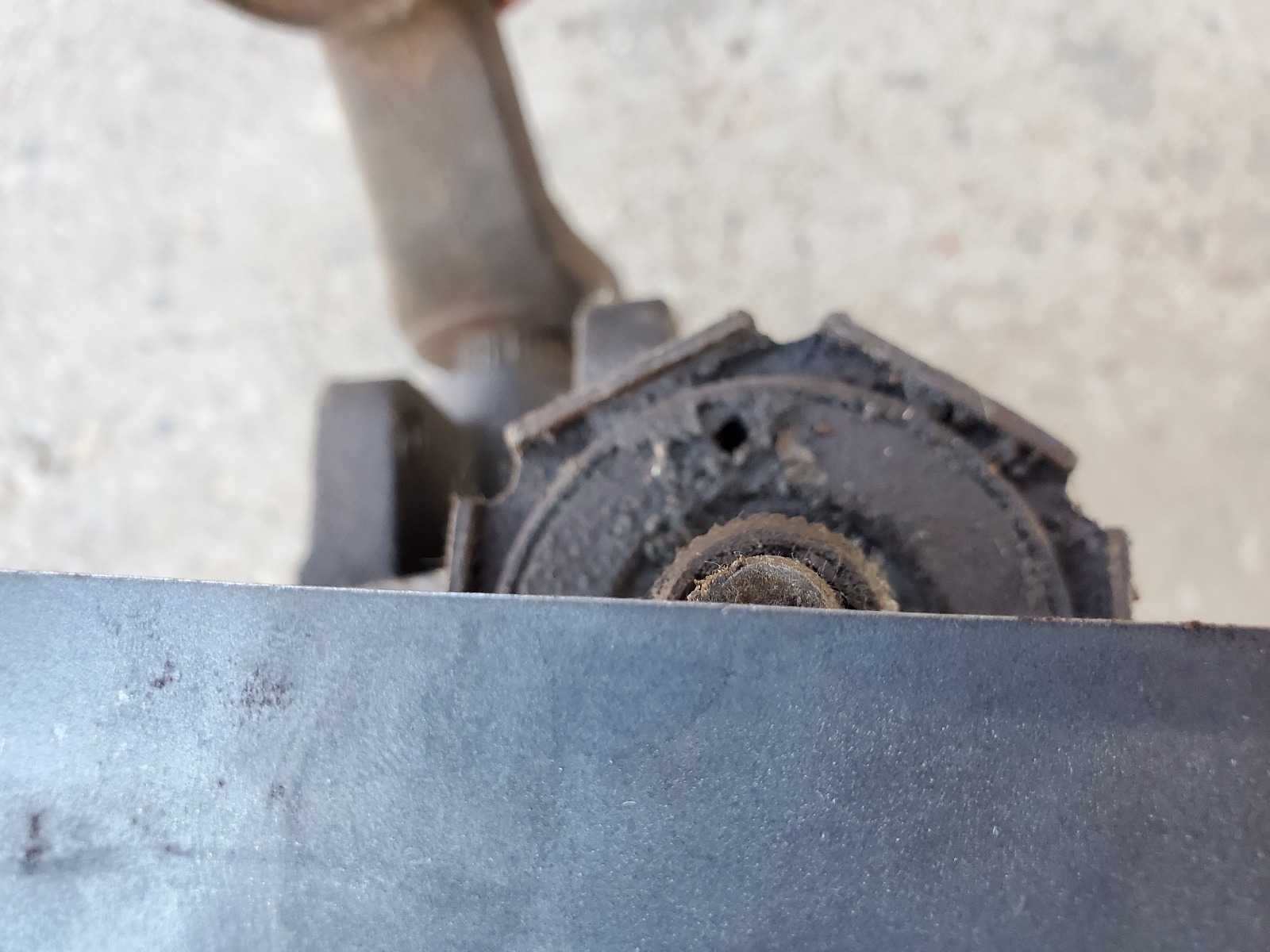

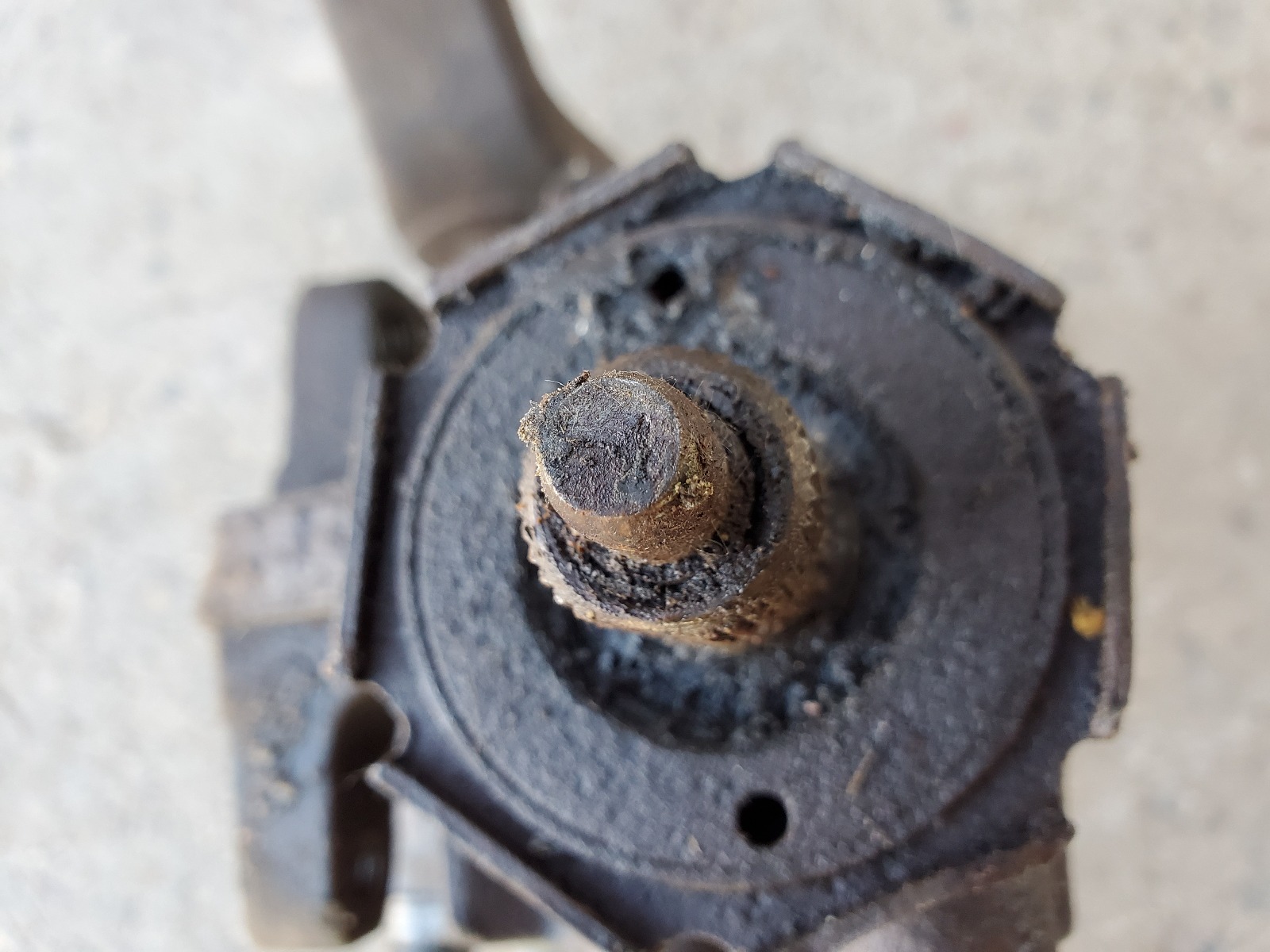

Counting spines can be a little challenging because of the flat spot on the shaft

The way to count the splines is to pretend that the flat spot is not there and it is fully splined all the way around. This can be done by putting a straight edge through the middle and doubling the spline count
