Rear U-Bolts, Square

Rear U-Bolts, Square

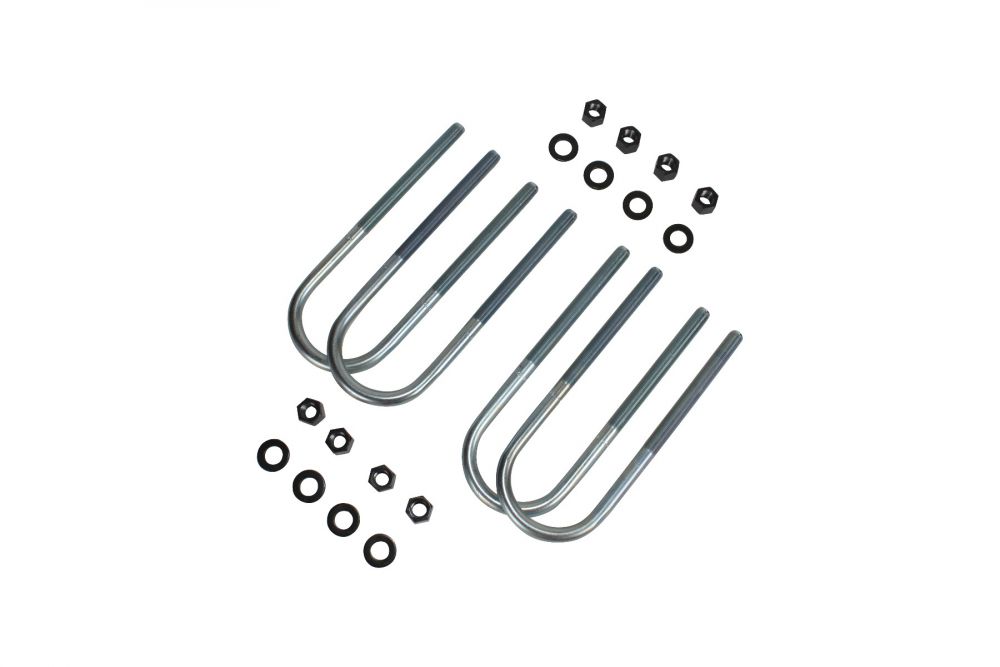

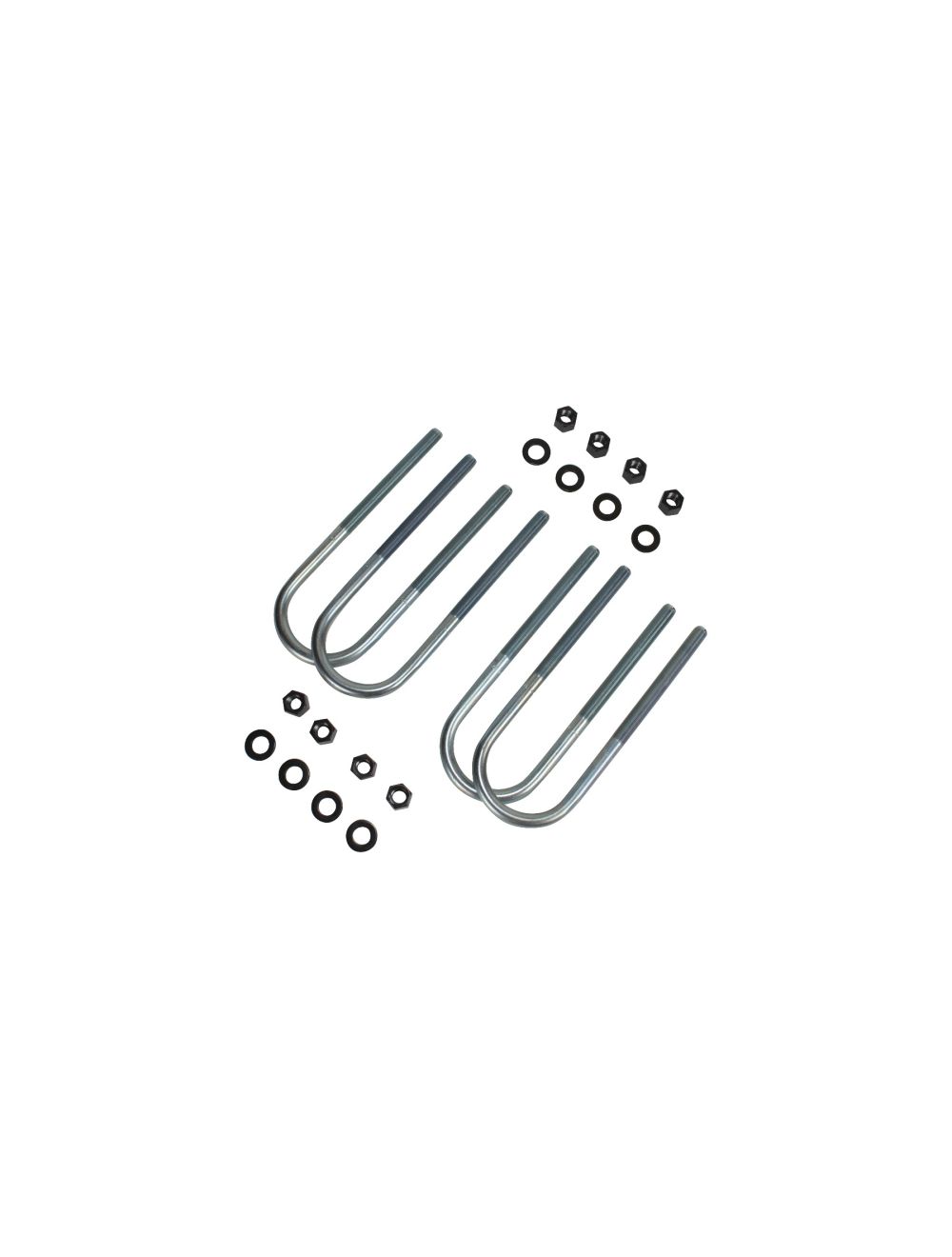

U-bolt kit for GM 1/2 Ton rear axles, 1998 and older, with 3" axle tubes, 10-1/2" long

Rear u-bolt kits, round.

6" of 5/8"-18 RH thread, you can cut off the ends if you have extra length.

Silver zinc plated.

Torque to 135 ft. lbs., check often.



As low as $50.00
SKU
GU38106
Estimate Fees

'98 and older GM 10 and 12 bolt rear axles use 3" axle tubes.

'99+ GM 10 bolts and most Dana 60 rear axles use 3-1/8" axle tubes.

Most GM 9.5" and 10.5" 14 bolts have 3-3/8" axle tubes, we use 3-1/2" u-bolts for those applications.

Dana 70, 80 and AAM 11.5" rear axle tube diameters vary, best to measure on those applications.



Icon Label Description Type Size Download
pdf U Bolt instructions pdf 178.2 KB Download
