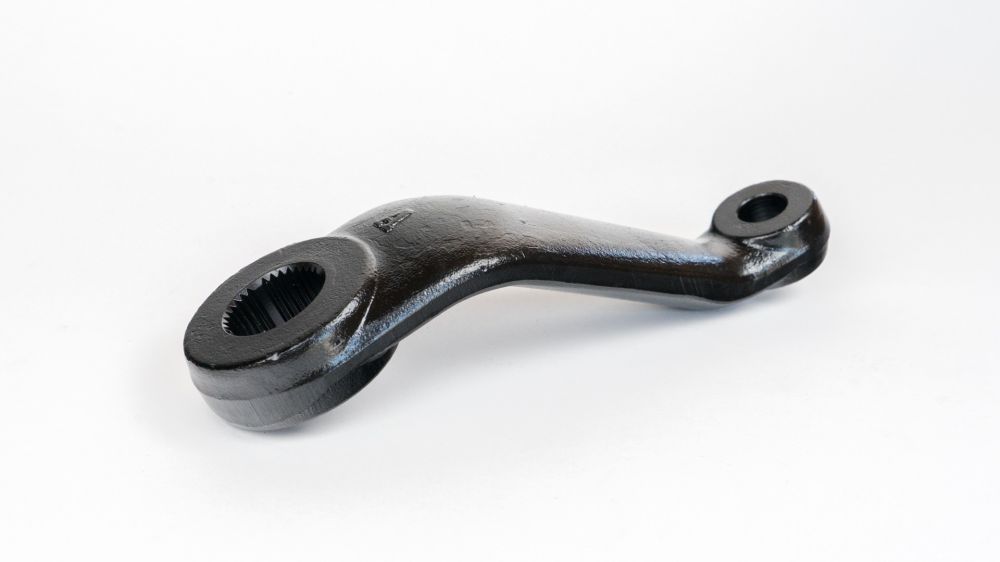

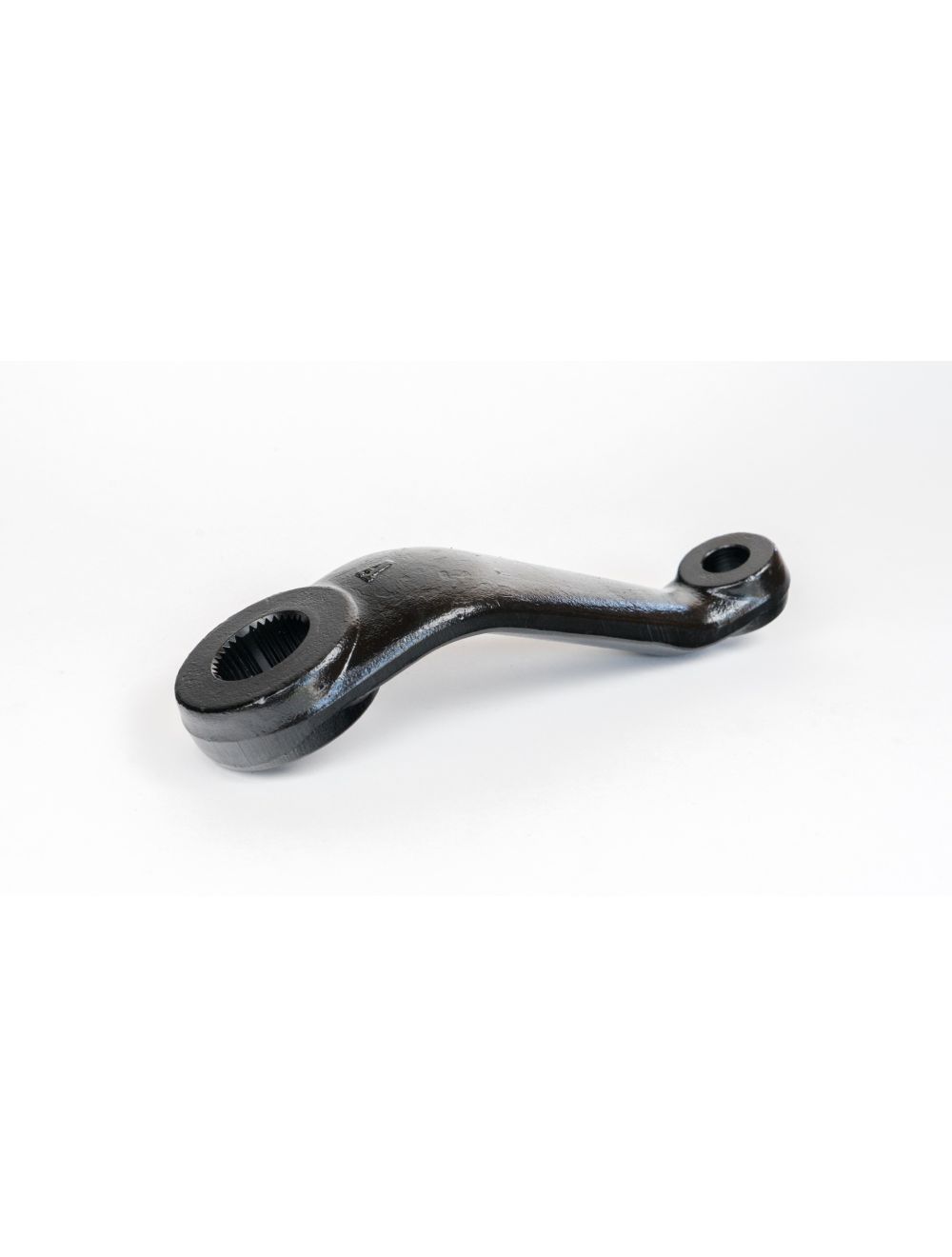

Pitman Arm for Crossover Steering Conversion / drilled straight for 3/4" bolt using Heim joint

Pitman arms for crossover steering.

As low as $80.00
SKU
U9004-SRE
Estimate Fees

This is the arm attached to the steering box shaft.

6-1/2" Hole to hole.

No index splines.

Fits full spline Saginaw power steering boxes.

GM tie rod end taper is ~.660” on the small side and ~.755” on the large side.  This matches up with our U9016-NP tie rod ends as well as ES2010R/L and ES2234.


DLE taper is ~.700” on the small side and ~.787” on the large side.  It's the same 7 degree (or 1-1/2" per ft.) taper as the GM tie rod ends, but reamed deeper.  This matches up with ES2026R and ES2027L, the stock push/pull GM draglink ends.
