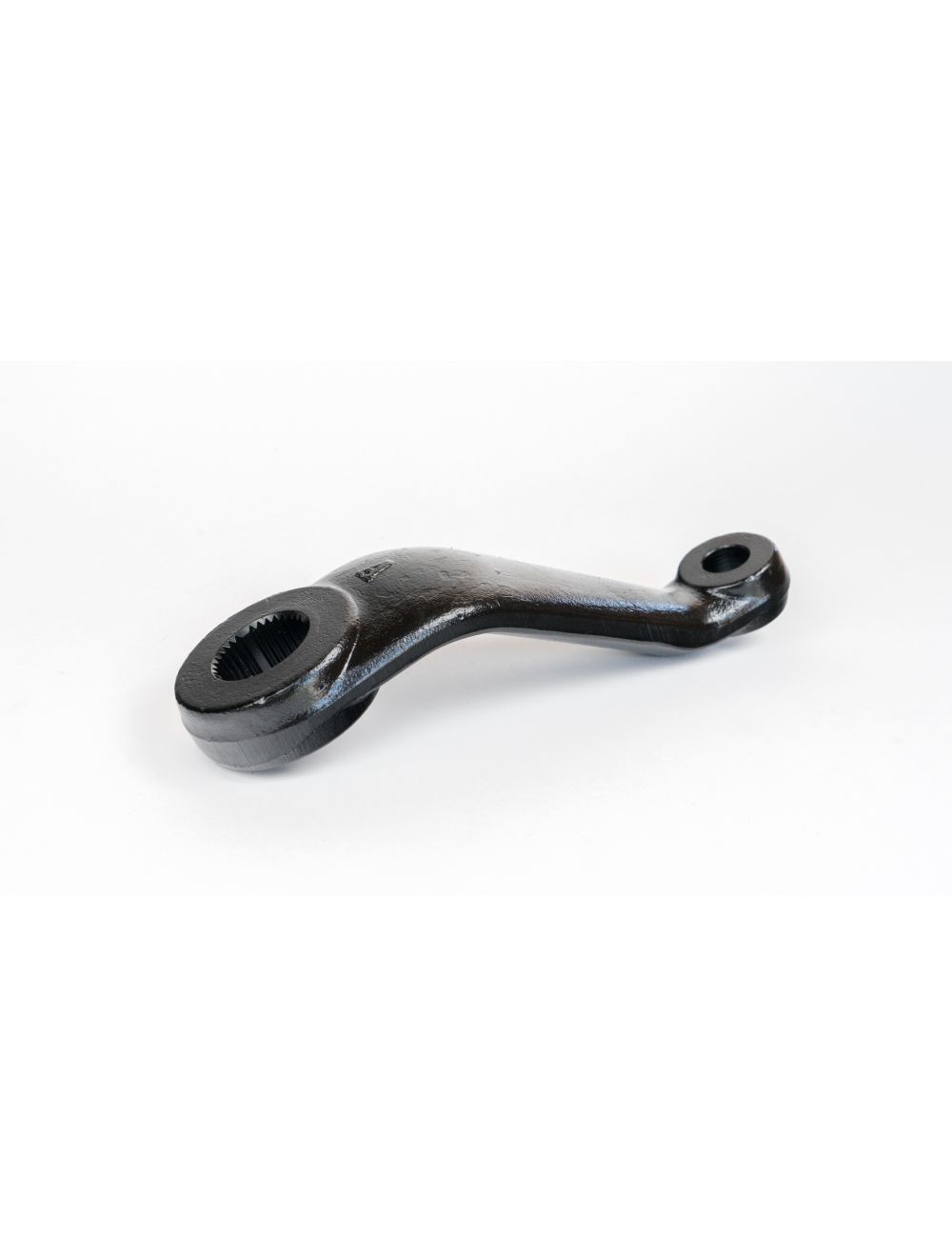

Pitman Arm for Crossover Steering Conversion 3.5" drop
Pitman arms for crossover steering.
As low as
$80.00
SKU
U9004
This is the arm attached to the steering box shaft.
6-1/2" Hole to hole.
No index splines.
Fits full spline Saginaw power steering boxes.
GM tie rod end taper is ~.660” on the small side and ~.755” on the large side. This matches up with our U9016-NP tie rod ends as well as ES2010R/L and ES2234.
DLE taper is ~.700” on the small side and ~.787” on the large side. It's the same 7 degree (or 1-1/2" per ft.) taper as the GM tie rod ends, but reamed deeper. This matches up with ES2026R and ES2027L, the stock push/pull GM draglink ends.
