ORD HD metal on metal tie rod ends, pair

HD tie rod ends with Kevlar Boots

$110.00
SKU
U9016-NP
Estimate Fees

1 LH, 1 RH with jam nuts and castle nuts.  These are a new HD end with angle capability similar to a GM draglink end but with the short strong shank of a tie rod end.

Our tie rod ends are manufactured specifically for us.  Factory GM draglink ends have good angle capacity, but have long shanks that can cause clearance issues.  Factory GM tie rod ends are nice and short, but have very little angle capacity.  Our ends are built with the best of both worlds, this is crucial in many applications (particularly 67-87 GM straight axle trucks) as many times the bend in the draglink has to start as soon as possible to clear the engine crossmember, the extra shank on draglink ends makes that impossible.

Additionally, our tie rod ends are a metal-on-metal design with a preload spring on the bearing race (sort of like the upper kingpin on a Dana 60), that helps keep the joint tight even as the parts wear.  Many joints are built with a plastic race that don't hold up well, see the picture below.  Additionally, the plastic ends don't appear to have a heat treat, our band saw flew right through them.  Notice the appearance of the metal-on-metal end (at right), it was very difficult to cut due to the heat treat.

All our tie rod ends come with our Kevlar Tie rod end boots. Thes boots are twice as strong as poly ones.



Differences between tie rod

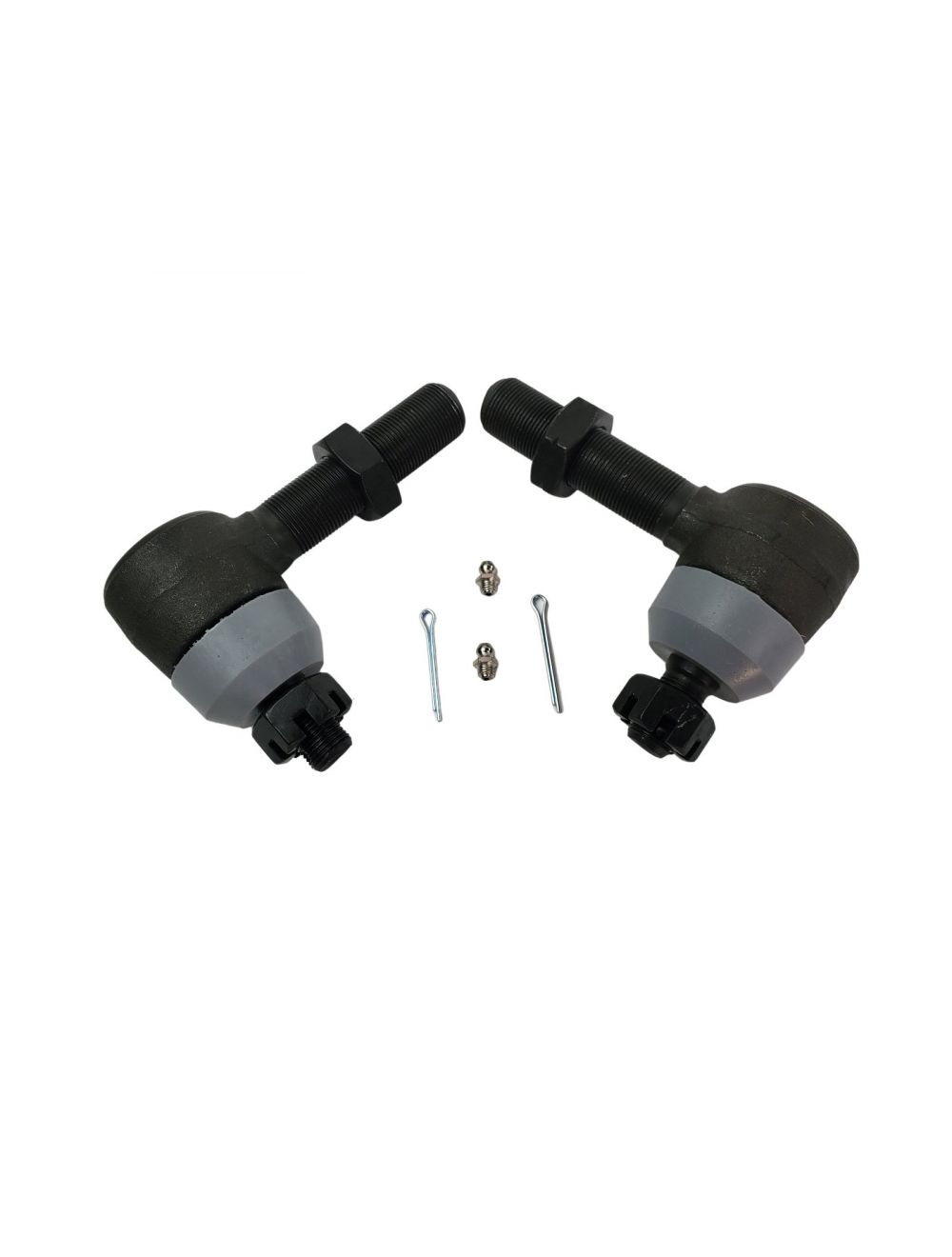

(1) LH Tie rod end with kevlar boot

(1) RH Tie rod end with kevlar boot

(2) Cotter pins

(2) Grease Zerks

(2) Castle Nuts

(2) Jam nuts
