Non-Greasable Rear Polyurethane Spring Bushing Kit, 1-1/2" Spring Eyes
Non-Greasable Rear Spring Polyurethane Bushing Kit, 1-1/2" Spring Eyes
$78.00
SKU
GU38001-A-N

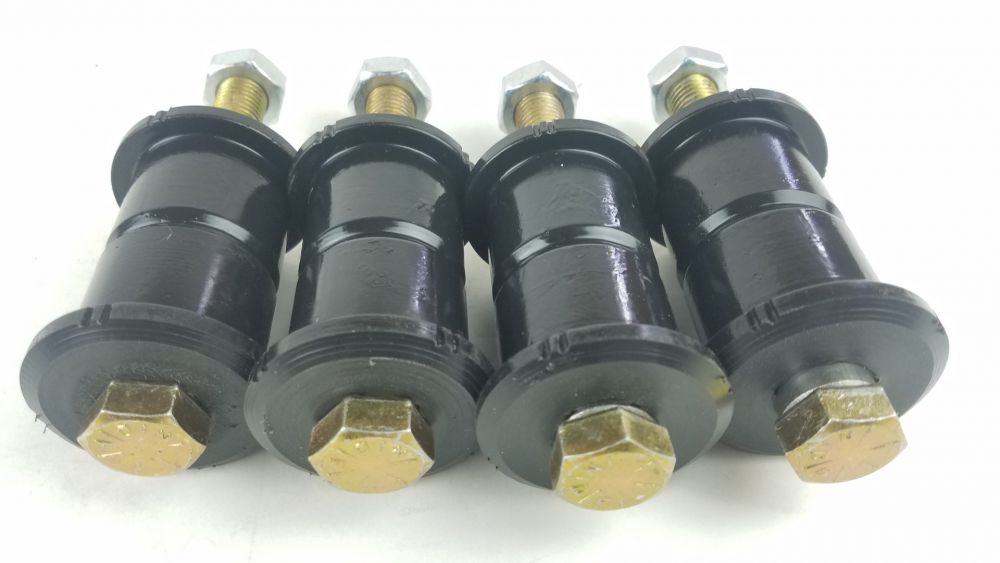

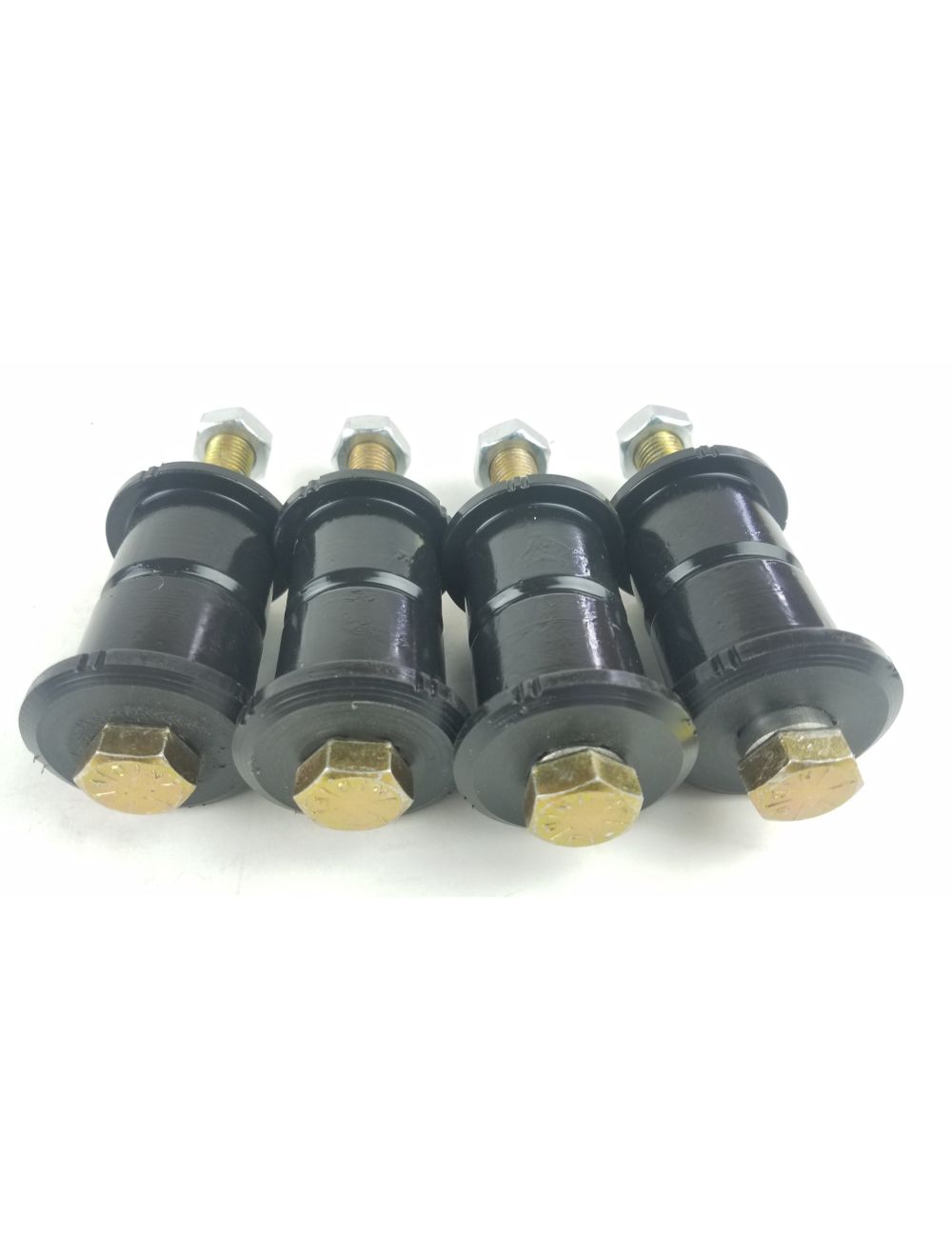

These kits consist of grooved polyurethane bushings, grade 8 bolts, and DOM steel sleeves. Each kit replaces the bushings/sleeves/bolts at both ends of both springs.
If you don't know what your inside diameter eye size is here is a quick way to find out.
Measure the Outside diameter of the spring eye, then measure the thickness of the main leaf.
Subtract 2x's the thickness of the leaf from the outside diameter. That should result in your inside diameter.
(8) ORDB8002 Polyurethane Bushing halves
(4) DOM Sleeve 3" long for 9/16" bolt 3/4" OD
(4) Grade 8 bolt with Top lock nut 9/16"-12 x 4.5"
(8) Hardened Washers
