Shock Bolt Kit

Shock Bolt Kit

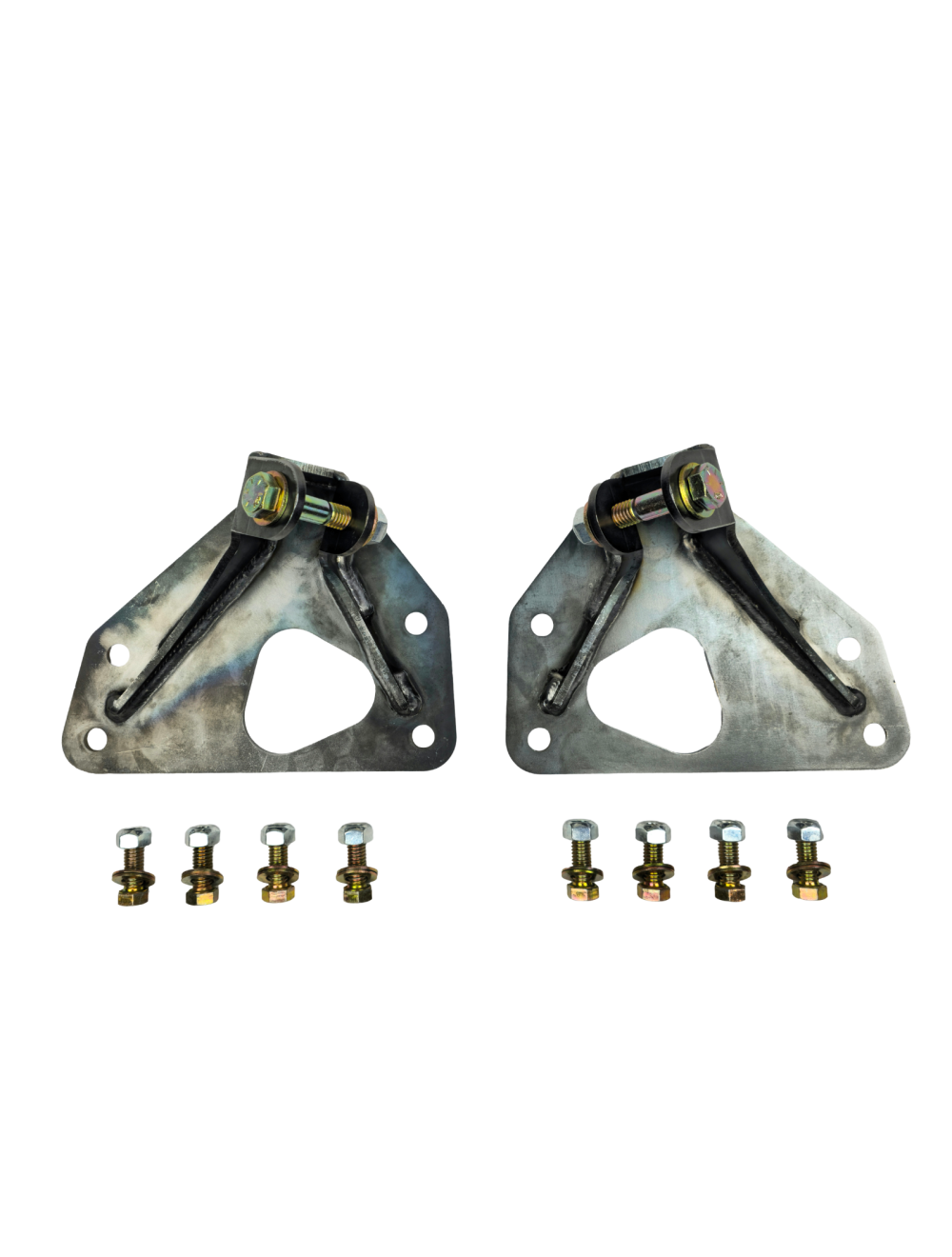

Offroad Design Bolt In Front Upper Extended Shock Mounts for 1967-1991 GMC/Chevy Full-Size

Pre-Order Product - Expected Ship Date: 1/2/2025

Our new extended shock mount bracket is designed specifically to allow 3" longer shocks on 1967-1991 GMC and Chevy trucks and SUVs. When using longer travel suspension systems like our custom springs it is a great idea to ensure that your shocks are long enough to maximize your wheel travel.

1973-1991 Vehicles

  • Rear bolt holes match factory shock mount location.
  • Front bolt holes match the "quad shock" mounting holes. Some trucks may not have these so you will need to drill them.
  • Allows for a 3" longer shock to be installed compared to factory shock mount.

1967-1972 Vehicles

  • Only fits automatic transmission or hydraulic clutch converted vehicles. Does not fit factory manual transmission trucks with factory manual transmission linkage. The reason for this is the factory manual clutch pivot on the frame protrudes from the frame rail in this location.
  • Rear bolt holes match factory shock mount location. Forward two holes will need to be drilled out.
  • Allows for a 3" longer shock to be installed compared to factory shock mount.



$119.00
SKU
U7002
Estimate Fees
Icon Label Description Type Size Download
pdf U7002 - Offroad Design Bolt In Front Upper Extended Shock Mounts for 1967-1991 GMC/Chevy Full-Size Instructions pdf 371.2 KB Download
