Fox 2.0 Steering Stabilizer

Fox 2.0 Steering Stabilizer

Fox Performance Series 2.0 Smooth Body Remote Reservoir Shock - Standard Travel

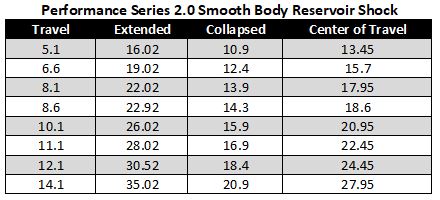

We recommend measuring for shocks at ride height and matching the center of travel measurement as close as possible

$309.95
SKU
Fox 2.0 Remote Res

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Shock Family Features:

  • Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Body Plating - Clear-anodized for a durable finish
  • Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
  • Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft - 5/8" hard chrome plated heat-treated alloy steel
  • Piston - Race-developed high-flow piston design
  • Hose - Stainless steel braided -5 hose for improved durability
  • Valving - Application specific valving to maximize performance
  • Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Eyelet Bushings - Quiet nitrile rubber allows for increased suspension articulation

Includes billet reservoir clamp



Icon Label Description Type Size Download
pdf Fox 2.0 Remote Res Exploded View pdf 252 KB Download
pdf Fox 2.0 Installation Instructions pdf 285.1 KB Download
