Dodge Dana 60 Swap Kit for 67-87 Chevy For Most Aftermarket Springs, Greasable Kevlar Bushings

Kevlar Dodge Dana 60 swap kit for '67-87 ('91) Chevy, for aftermarket springs other than Superlift/Skyjacker Includes greasable bolts/bushings/sleeves/spacers

$85.00
SKU
GU37019
Estimate Fees

Greasable Kevlar front spring eye bushing kit for '67-87 K10/K20 pickup, '69-91 Blazer, '67-91 Suburban and '76-91 K30/V30 pickup. For aftermarket 2-1/2" wide (lifted) springs.

Includes bushings/sleeves/greasable bolts for both ends of both front springs. For 1-1/2" eyelet at front of front spring, 1-1/8" eyelet at back of front spring. Fits all aftermarket springs except Superlift and Skyjacker.

'93 and older Dodge Dana 60's, have spring pads that are 1/2" wider than GM solid axles, this special bushing kit offset the springs to make everything line up.

Uses larger 1/2" bolt at the back, this will require ORD HD front shackles plates or drilling stock shackles for larger bolt.

For install the thick washer and thick shoulder bushing always face the motor. This helps offsetting to the wider dodge d60 perch.

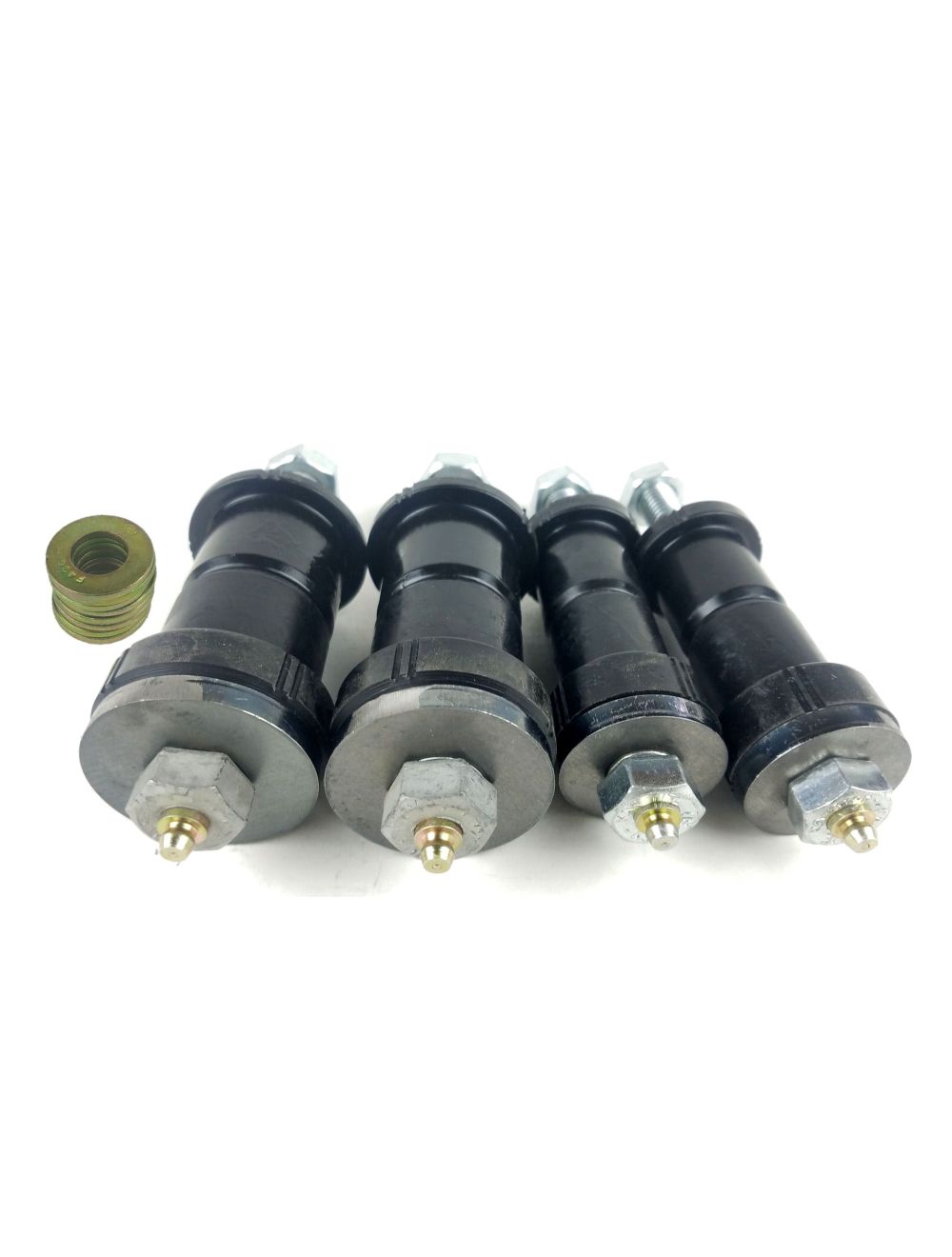

(2) ORDB8002 Kevlar Bushing Halves

(2) ORDB7005 Kevlar Bushing Halves Trimmed down

(2) ORDB7003 Kevlar Bushing Halves

(2) ORDB7005 Kevlar Bushing Halves

(2) Large Spacers

(2) Small Spacers

(2) Greaseable DOM Sleeve 3.5" long for 9/16" Bolt

(2) Greaseable High Head better than Grade 8 Bolts with Top Lock Nut and larger shank grease zerk 9/16"-12x5"

(2) Greaseable Chromoly Sleeve 3.5" long for 1/2" Bolt

(3) Greaseable High Head better than Grade 8 Bolts with Top Lock Nut and larger shank grease zerk 1/2"-13x5"

(8) Hardened washers
