SM465 to NP203 Kit

What you need to adapt a SM465 to a NP203

In stock
SKU
SM465 to NP203 Kit
Grouped product items
Product Name Qty
SM465/D300 adapter
$320.00
SM465 32 spline short output shaft
$300.00
32 Spline 203 Input Gear
$155.00

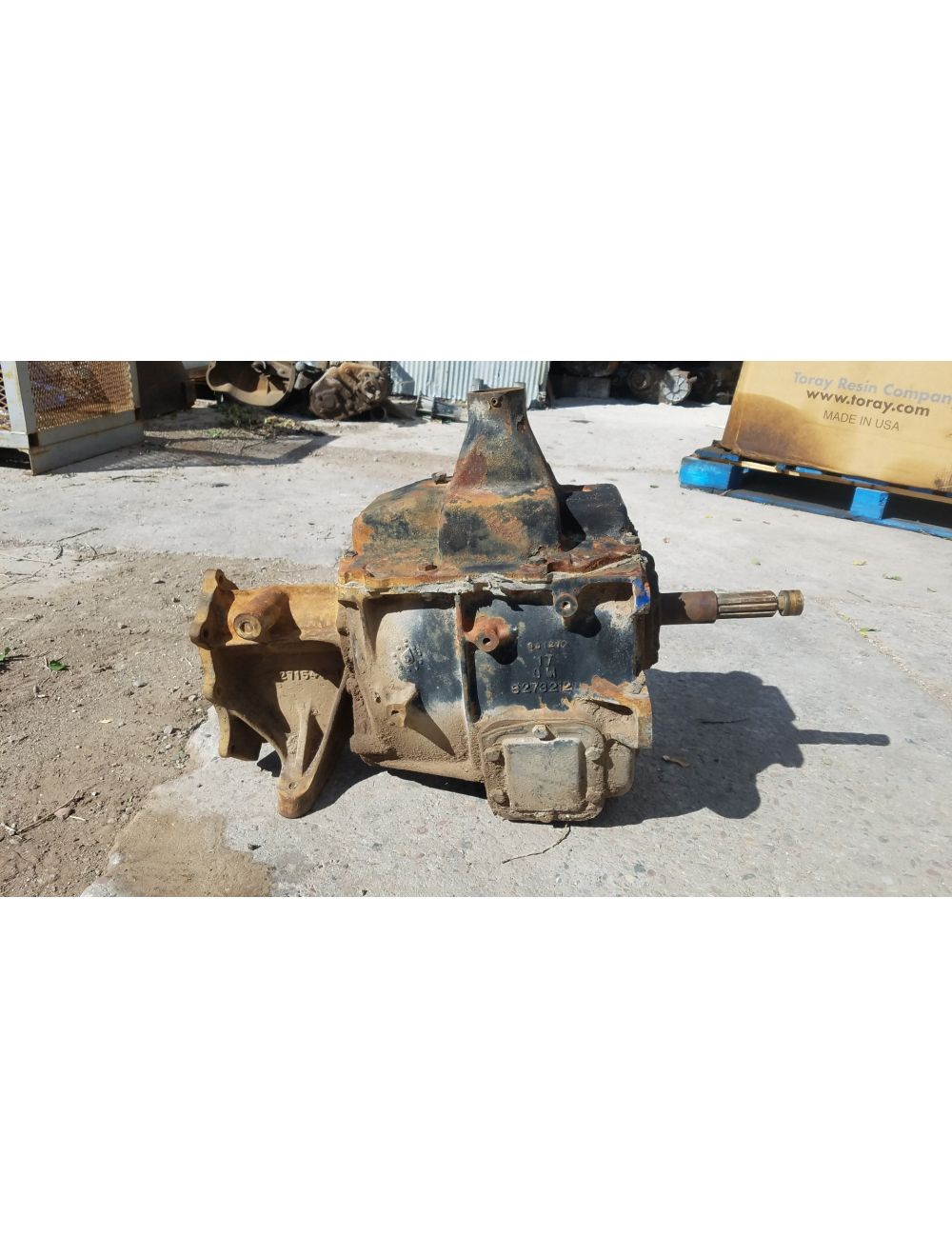

The SM465 was available stock with a NP203 behind it. These are extremely rare to find, they were also 10 spline and very commonly found with the splines chewed up. There isn’t aftermarket reproductions available of the 10 spline input for the np203 or the sm465/203 adapter.


So, to get the two together we have this option:


This adapter has a different bolt pattern for the face of the NP203. The stock mounting holes need to be filled in and the new adapter pattern needs to be drilled/tapped into the face of the NP203. A tab needs to be made to hold down the idler shaft.
The result is a short combo with a strong 32 spline output/input!

If you already have one of the items on this list and do not need to order just put a (0) in the quantity.
